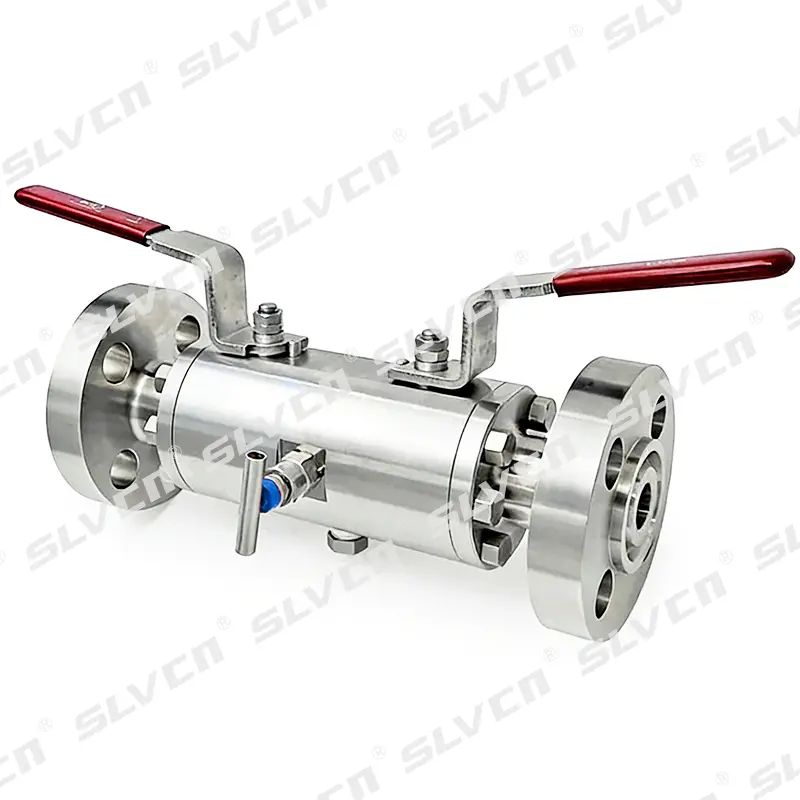

China High-Integrity Double Ball DBB Trunnion Mounted Valve - Reliable China Suppliers & Factory for Oil and Gas Solutions Manufacturer, Factories

,

√ Achieve true double isolation with our innovative independent dual ball design, ensuring maximum safety and reliability.
√ Our integrated block and bleed system provides verified pressure control for optimal performance in various applications.
√ Engineered with trunnion-mounted construction, our valves demonstrate outstanding performance even under high-pressure conditions.
√ The compact integrated assembly minimizes connections and potential leak paths, enhancing efficiency and durability.
√ Specifically designed to meet the rigorous demands of oil, gas, and pipeline service conditions, making it an ideal choice for various industries.
√ As a leading factory and supplier in China, SLVCN brings over 30 years of manufacturing expertise and a proven track record in global project supply.

,

Product Description

Key Features

True Double Block

Two independent balls provide complete upstream and downstream isolation, ensuring zero leakage.

Built-In Bleed Port

Quickly release cavity pressure and easily check for leaks—safer and more reliable.

Trunnion-Mounted Stability

Trunnion-mounted design reduces torque and keeps sealing performance consistent under high pressure.

Compact DBB Design

Dual block and bleed integrated in one body—fewer connections, less chance of leaks, and easier installation.

Easy Maintenance

Bolted body design allows fast inspection and simple component replacement, saving time and effort.

Fire-Safe & Anti-Static Stem

Built to prevent static build-up, withstand fire, and eliminate stem blowout risks—perfect for oil, gas, and critical pipelines.

Frequently Asked Questions
What is a Double Block and Bleed (DBB) ball valve?
A Double Block and Bleed (DBB) ball valve uses two independent seating surfaces that simultaneously block flow from both upstream and downstream directions. A bleed port between the two seats allows operators to release trapped cavity pressure and verify seal integrity without removing the valve from the pipeline.
What is the advantage of a trunnion-mounted ball valve over a floating ball valve?
Trunnion-mounted ball valves have the ball mechanically fixed with trunnion bearings at both top and bottom, which absorbs line pressure loads and significantly reduces operating torque. This makes them ideal for large-diameter or high-pressure applications where floating ball designs may require excessive actuator force and experience uneven seat wear.
What does "fire-safe" mean in the context of ball valves?
A fire-safe ball valve is designed and tested to maintain a secondary metal-to-metal seal in the event that soft seats or seals are destroyed by fire. This prevents uncontrolled leakage of flammable or hazardous media during extreme heat conditions, protecting personnel and infrastructure in critical industries such as oil and gas.
Why is an anti-static stem important in a ball valve?
Static electricity can accumulate on the ball and stem during fluid flow, especially with hydrocarbons or other flammable media. An anti-static design provides a continuous electrical path between the ball, stem, and valve body, safely dissipating static charges and eliminating the risk of sparks that could ignite surrounding gases or vapors.
How does the compact DBB design reduce installation complexity?
A compact DBB valve integrates two block valves and one bleed valve into a single valve body, replacing what would otherwise require multiple separate valves and pipe fittings. This consolidation reduces the number of potential leak points, lowers overall weight, shortens the installed pipe run, and simplifies both initial installation and future maintenance activities.
What industries commonly use DBB ball valves?
DBB ball valves are widely used across the oil and gas sector (upstream, midstream, and downstream), petrochemical plants, refineries, LNG terminals, pipeline transmission systems, and subsea applications. Their ability to provide positive double isolation with an integrated bleed makes them essential wherever safety regulations require reliable isolation and pressure monitoring between two independent seals.
