Fully welded one-piece body eliminates external leakage paths, ideal for subsea, underground, and harsh pipeline environments.
Trunnion-mounted ball design ensures reliable operation under high-pressure conditions and enhances load-bearing stability.
Double Block-and-Bleed (DBB) design provides secure isolation, safe maintenance, and enhanced operational safety.
Anti-blowout stem with anti-static protection ensures maximum safety in critical and flammable applications.
NACE MR0175-compliant materials guarantee reliable performance in sour, corrosive, and challenging service conditions.
Fire-safe design and advanced sealing technology ensure long-term performance, supporting manual, electric, and pneumatic operation.

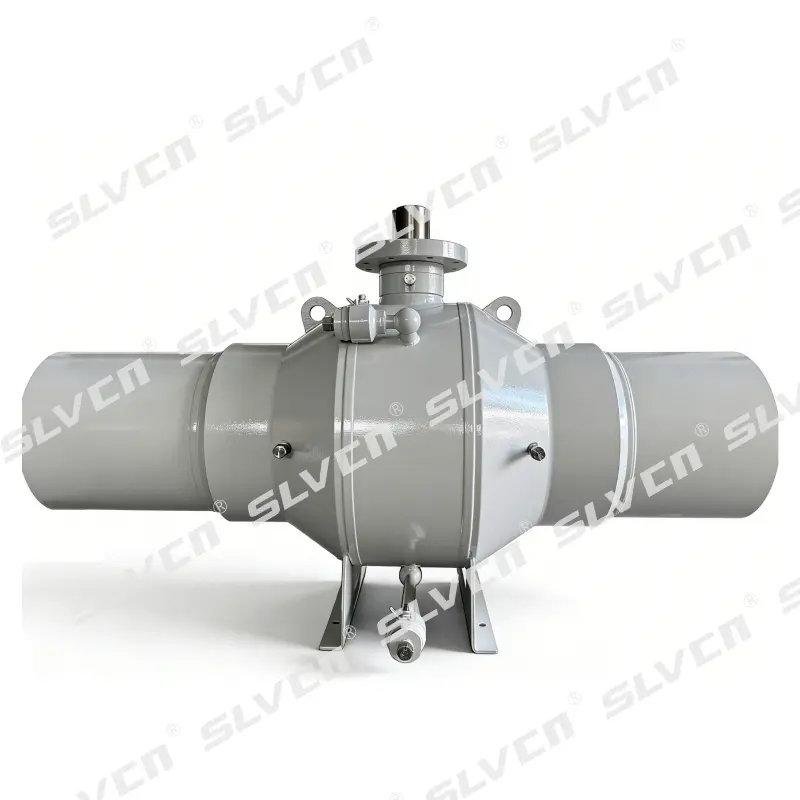

SLVCN Class 600 Fully Welded Trunnion-Mounted DBB Ball Valve is designed for high-pressure and high-flow pipeline systems, including pumping and compression stations, subsea, underground, and other harsh service applications. Featuring a fully welded one-piece body, the valve eliminates external leakage paths and delivers reliable, long-term performance in critical operating conditions.
Engineered with a trunnion-mounted ball and Double Block-and-Bleed (DBB) design, the valve ensures stable operation, secure isolation, and safe maintenance. It is well suited for demanding applications in oil & gas, chemical & petrochemical, power generation, and other industrial sectors.
| 1 | Welding steel pipe | 10 | Seat | 19 | Seal Ring |
| 2 | Seamless steel tube | 11 | Seat | 20 | Extension Stem |
| 3 | Right Body | 12 | Ball | 21 | Bearing |
| 4 | Spring | 13 | Trunnion Support | 22 | Extension Support |
Dimensions: Class 600 - Full Port
| NPS/DN | B1 in/mm | B2 in/mm | Weight |
|---|---|---|---|
| 2" | 1.94 | 1.94 | 79 |
| 3" | 2.94 | 2.94 | 154 |
| 4" | 3.94 | 3.94 | 254 |
